Web Maps for Web Developers

Niene Boeijen

github.com/NieneB/webmapping_for_developers

Webmapper

Utrecht, the Netherlands

Data - Design - Technology

Webmapper

Utrecht, the Netherlands

We make interactive maps & geo data visualizations

Our expertise is open {source; data; standards}

We combine cartography with web technology

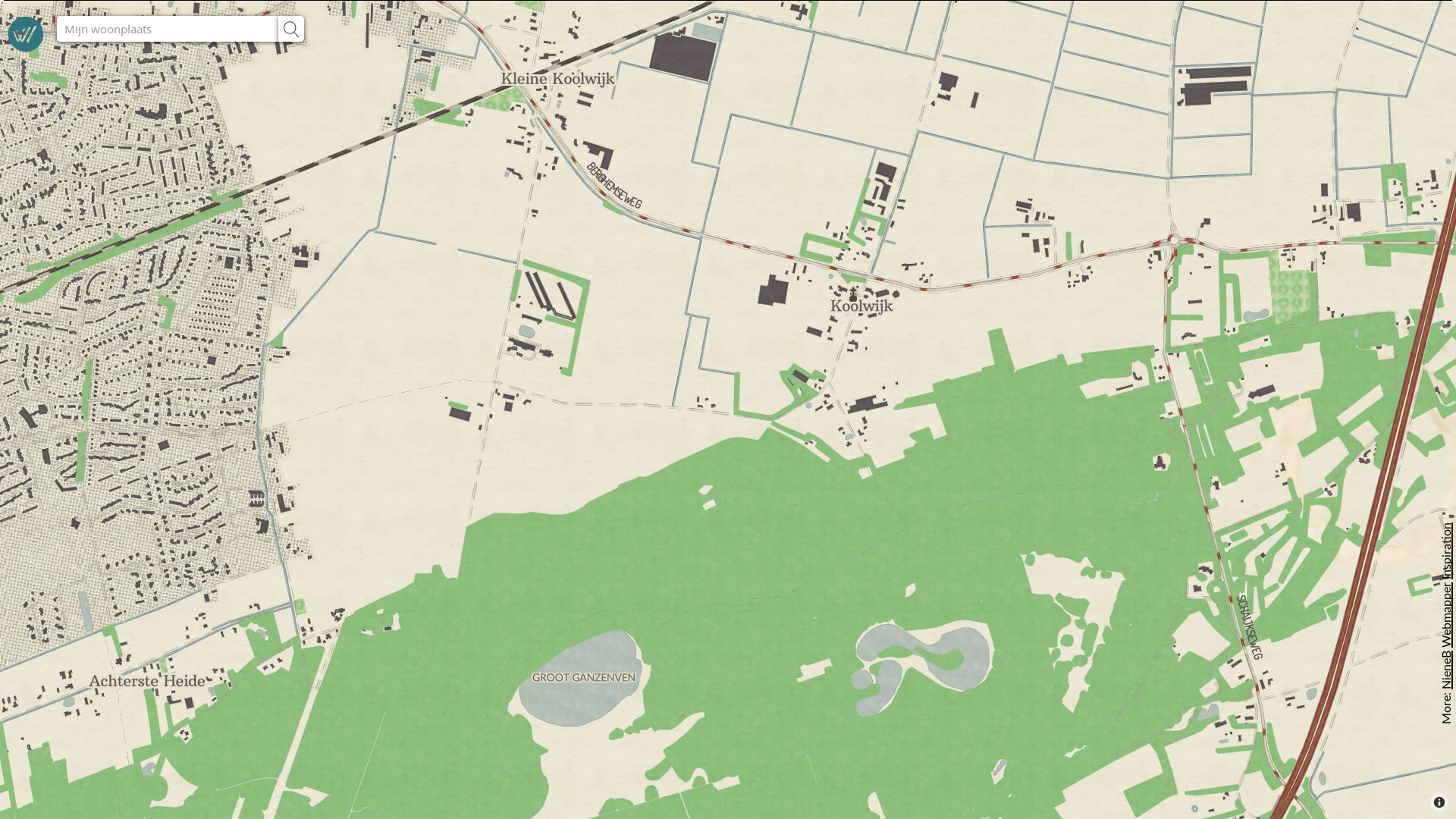

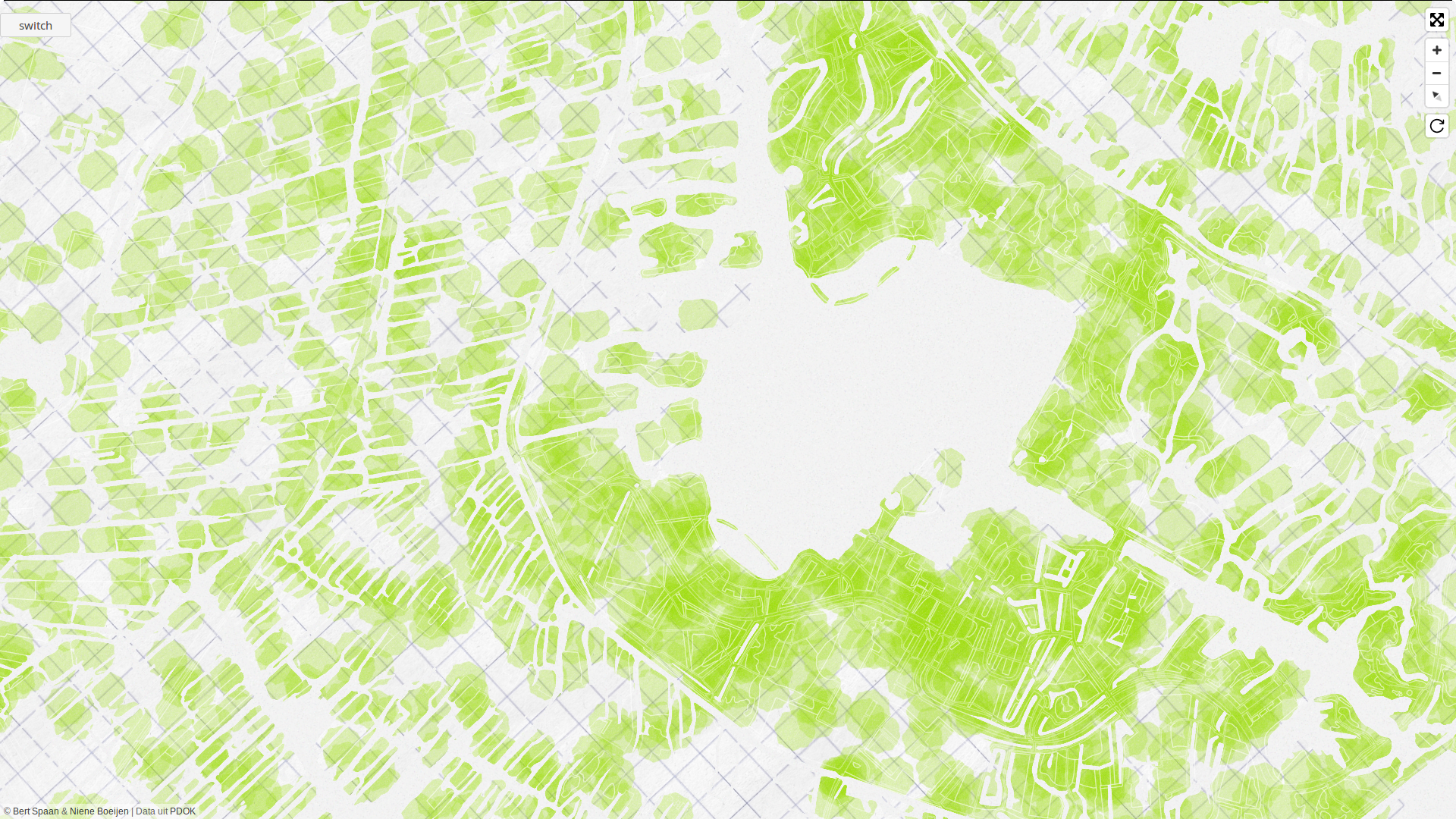

What I make:

The Goal of this evening

From Geo Data to the web

What you need to know as a web developer wanting to make a web map

Focus on the client side

Let's talk maps!

"Everything is related to everything else, but near things are more related than distant things"

Tobler's first law of geography

Power of Maps

.. we have no choice but to think and see spatially.

They stimulate both sides of our brain: the right side that’s intuitive and aesthetic, and the left side that’s rational and analytical. Maps are this wonderful combination of both.

Allen Carroll

What is Geo Data ?

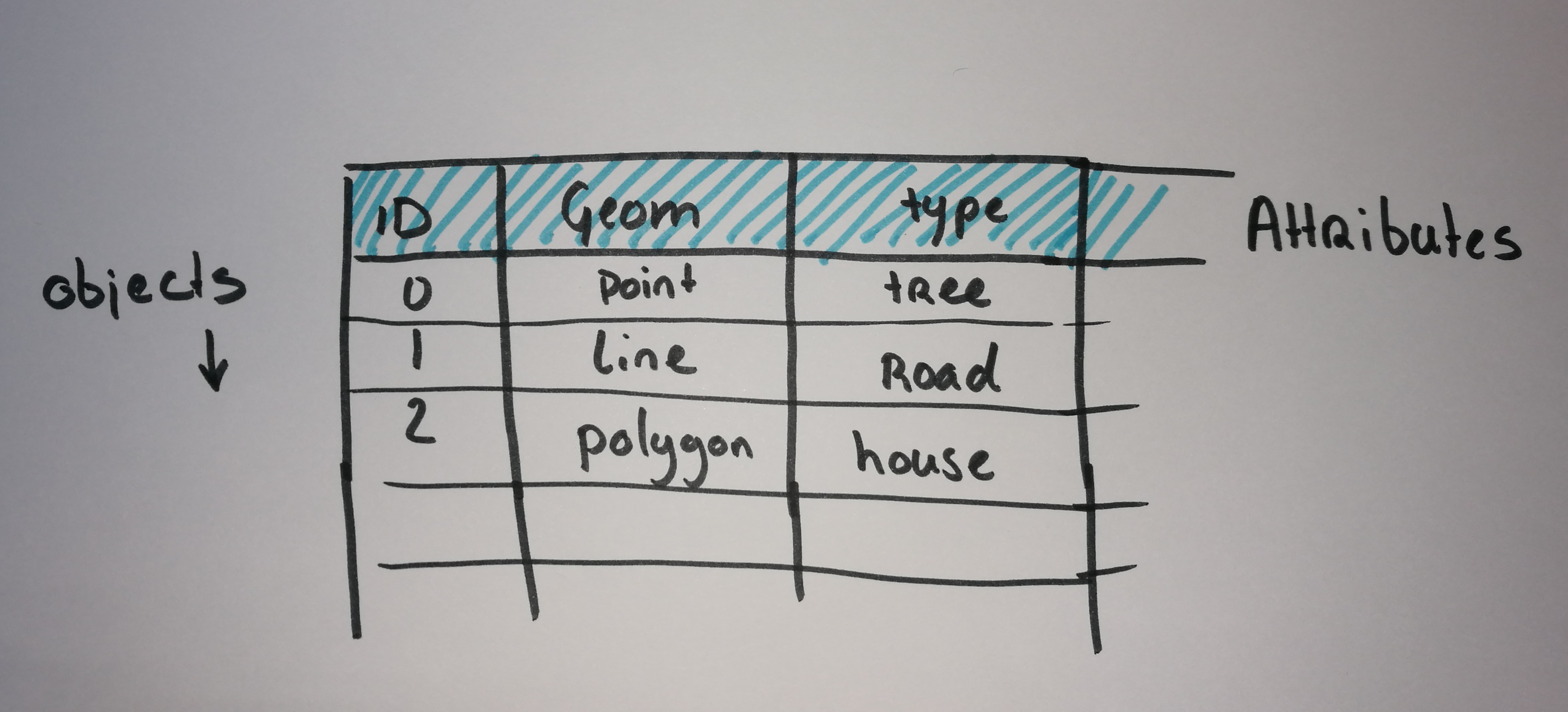

Geo Data
= Data + Location

Maps = Collection of Geo data

Maps organize complex data about the environment.

Reveal patterns and relationships.

Maps allow us to communicate about location using a common framework

Coordinate system

Communicate locations & distances on the Earth's surface

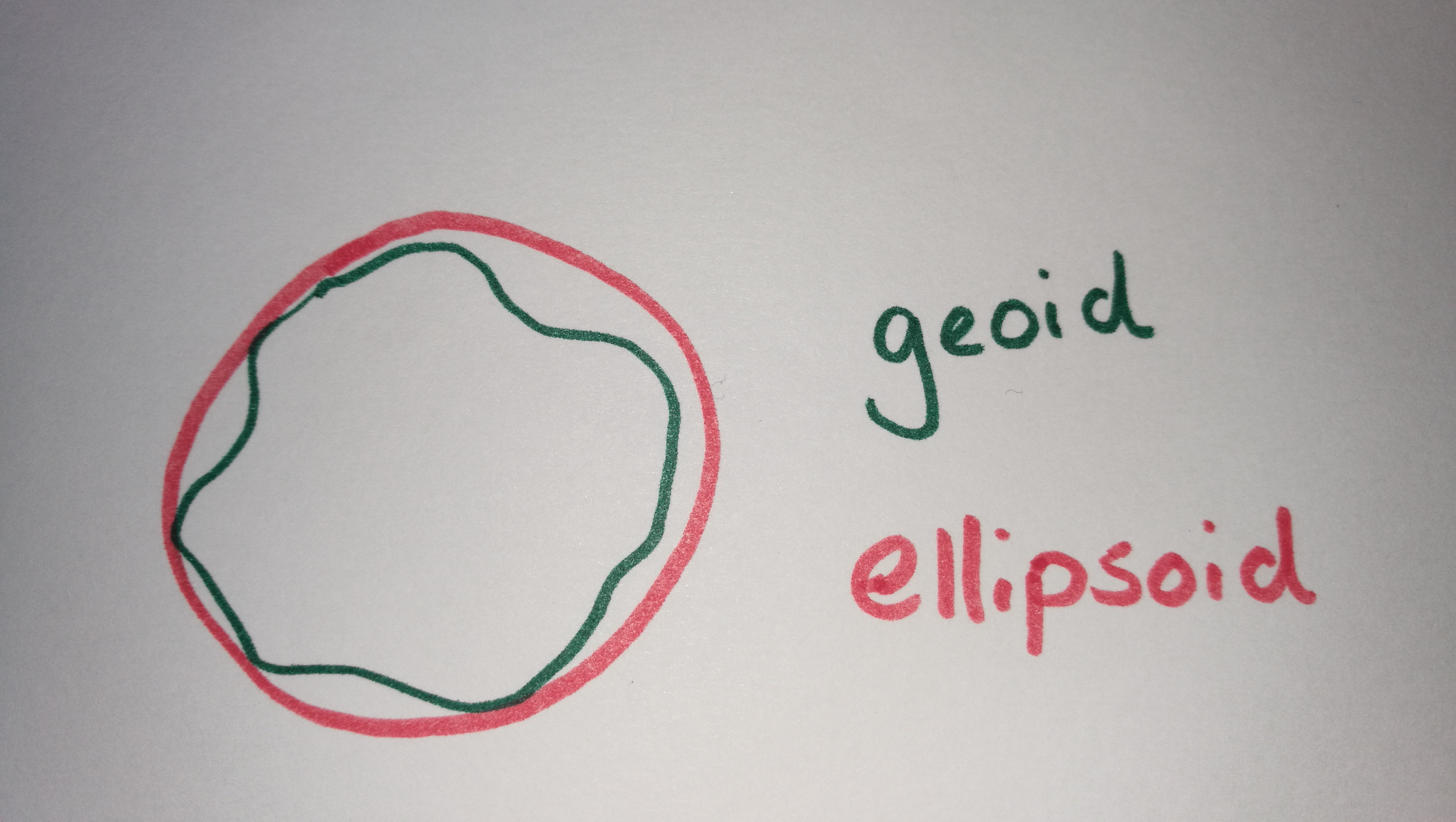

Shape of the earth?

The real shape of the earth is too complex to be useful as a reference for measurement..

Geographic coordinate system

3D model

Longitude, Latitude

Geographic Coordinate System:

WGS84 EPSG:4326

Lon Lat in decimal degrees

GPS

Projected coordinate system

Mathematical projection / translation

2D

Projected Coordinate System:

Spherical/Web Mercator EPSG:3857

Square, scale not relevant, shapes important

Google scheme EPSG:900913

We store data in EPSG:4326, but display it in EPSG:3857!

Standard way to store most geodata for the Web:

GeoJSON

{
	"type": "Feature",
	"geometry": {
	"type": "Point",
	"coordinates": [5.2394137,52.0819662]
	},
	"properties": {
	"name": "Hotel Theater Figi"
	}
}

Why is Mercator wrong?

True Size puzzle

West Wing

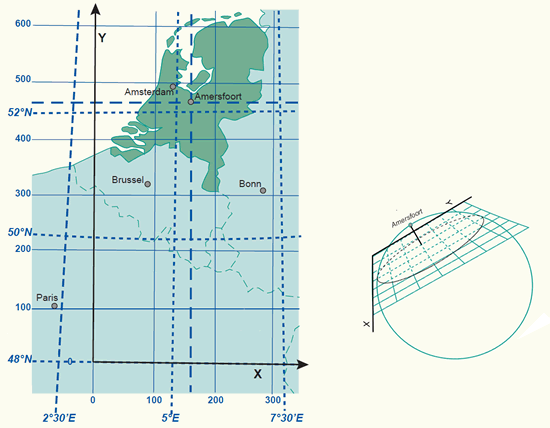

Projected Coordinate System:

RD New EPSG:28992

Netherlands!

Geographic Coordinate System:

WGS84 EPSG:4326

Projected Coordinate System:

Web Mercator EPSG:3857

Projected Coordinate System:

RD New EPSG:28992

[1]

[2]

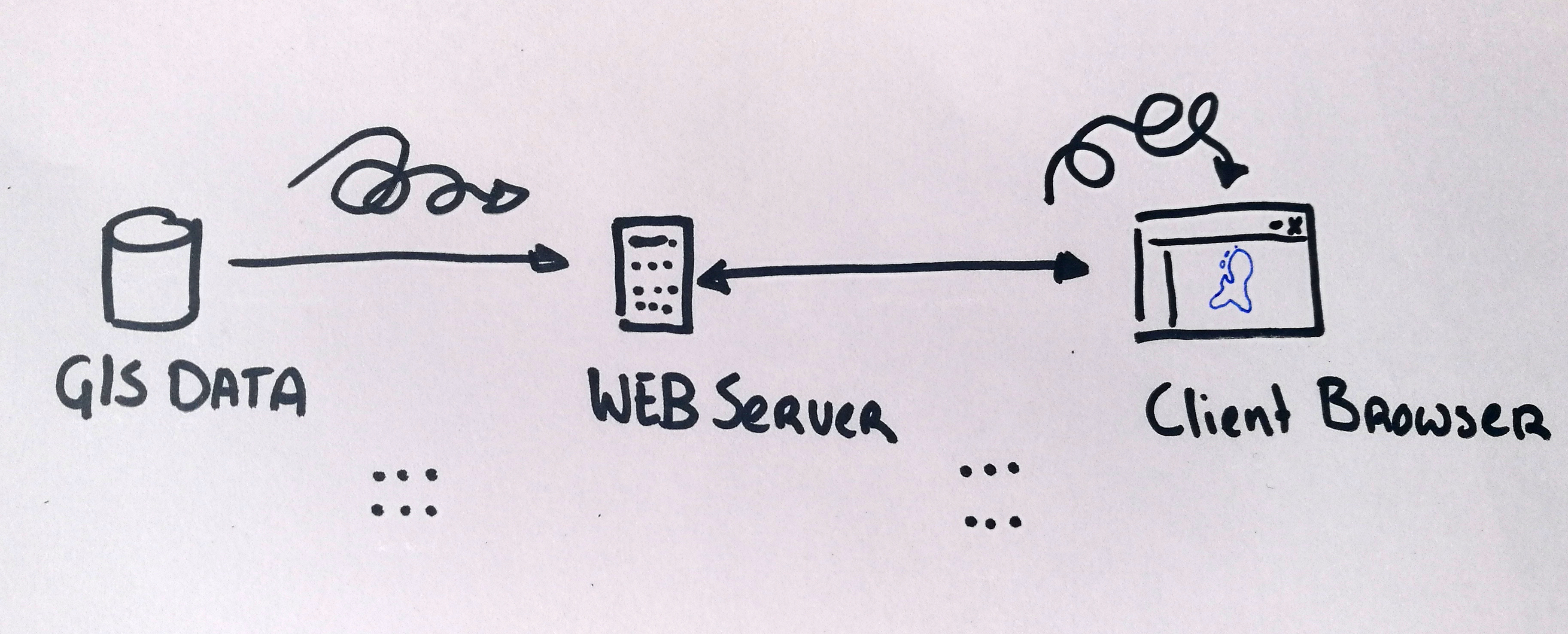

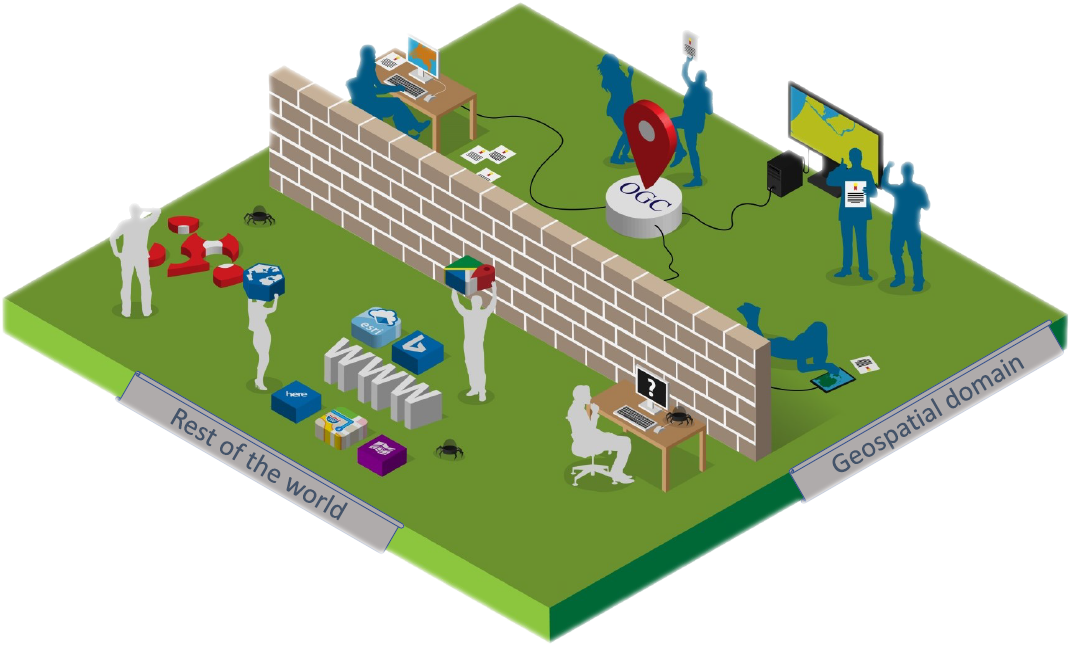

Getting my map to the web

OGC standards

• WMS Web Map Service
• WMTS Web Map Tile Service
• WFS Web Feature Service

Defacto - Community standard

• Google/OSM (XYZ)
• TMS Tile Map Service
• QuadTrees (microsoft)

What is a web map?

Analogue paper maps

openstreetmap.org

google.com/maps

a little History

But really slow to load..

in 2004 Endoxon found a way for quick online mapping! map.search.ch

2005 Google Maps took over!

The solution?

Tiles!

Tiles

All tiles size 256x256 pixels

Placed in a grid, sharing boundaries

Seamless map

Slippy maps, Google/OSM (XYZ) - TMS - QuadTrees (Microsoft)

All these little tiles load way faster than one big map!

Zoom levels

Each zoom level has its own set of tiles!

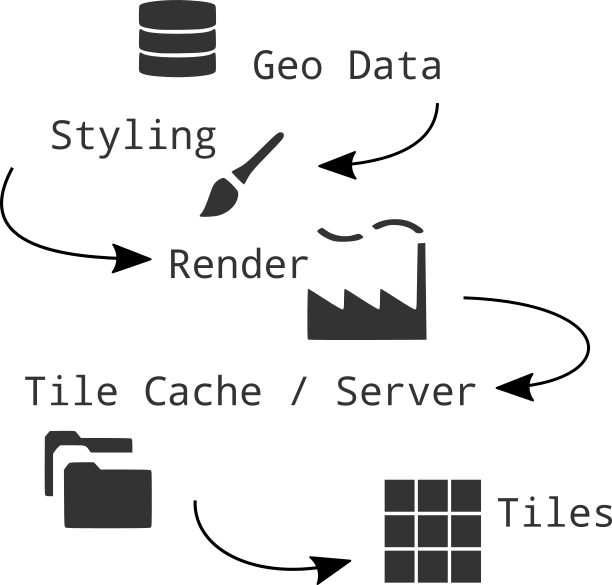

Serving tiles

Tiles are styled and rendered in advance

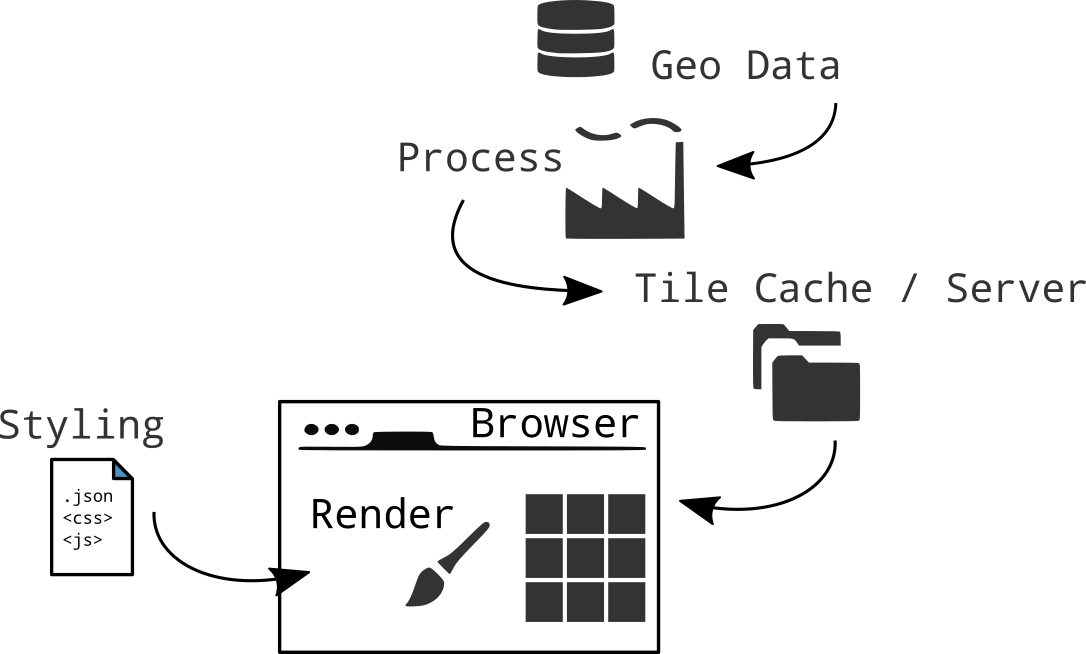

Vector Tiles

the newest technology!

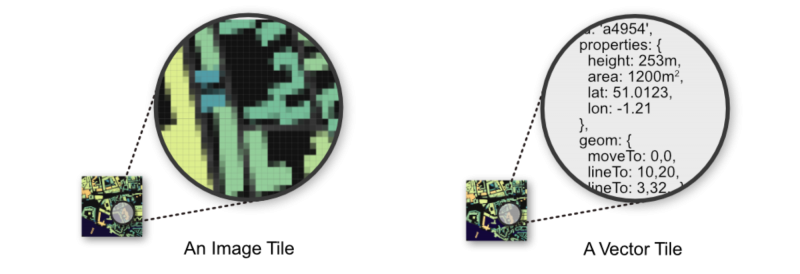

From Raster to Vector

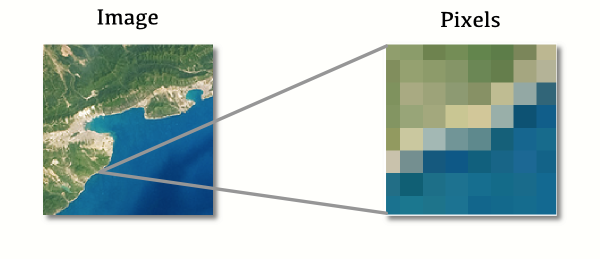

Disadvantages Raster Tiles

No interaction with objects

No information available about objects

Multiple visualizations = multiple tile sets

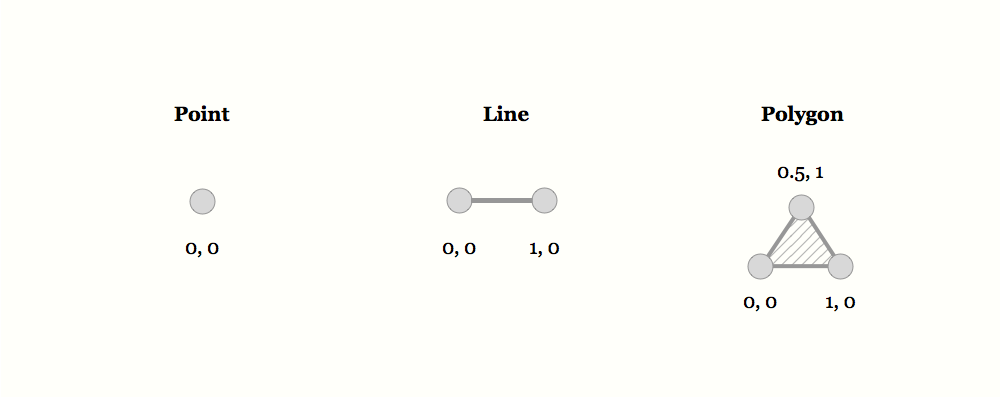

Vector Tile

Advantages Vector tiles

Rendering is done on client side not by the server

So different clients can style a map different

Small tile size. So faster data transfer.

High resolution.

Direct access to feature information.

Standards

Based on the binary protocal buffer (.pbf) from Google.

Standard already used by Esri.

Web Mercator projection, Google tiling scheme.

Formats

.mvt - .pbf

.mbtiles

Want to know more?

About Vector-tiles from Mapbox

MapboxGL.js

Open map tiles alternative

Cartiqo our own alternative

The Client side

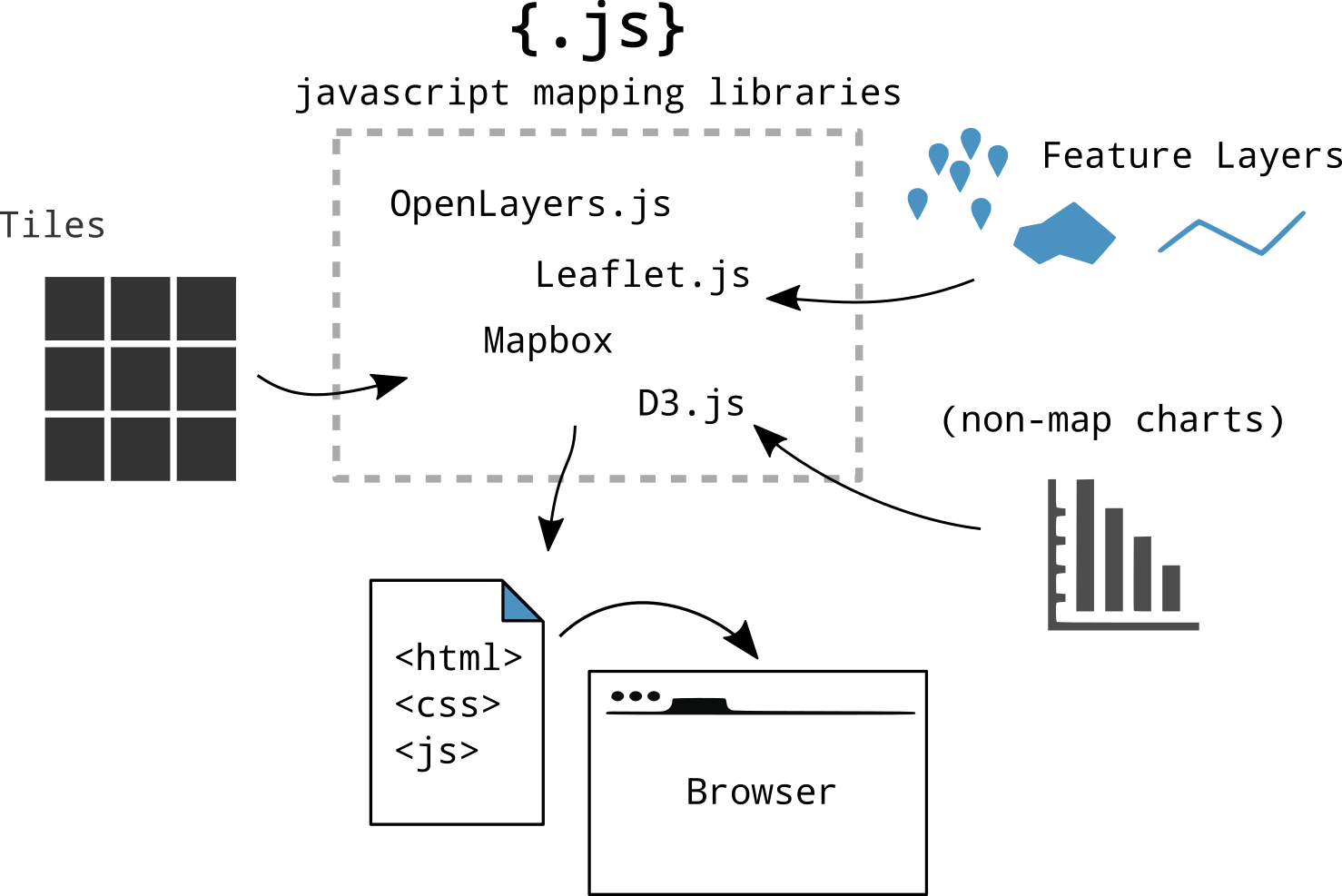

Web Map Building blocks

• Map Interface and Interaction
• Zoom, panning, clicking etc.
• Map events
• Tiles (raster/vector) as Base Layer
• Additional Data
  • File (GeoJSON)
  • WMS,WFS
  • Tiles

JavaScript Libraries for Mapping

OpenLayers

Leaflet.js

D3.js

ArcGIS Javascript API

MapboxGL.js

Tangram

CARTO

HERE Maps

Google Maps API

Vector tiles

MapboxGL.js

OpenLayers 3 -- Leafletseveral plugins available

ArcGIS API for JavaScript

Mapzen Tangram

Let's look at Leaflet for Raster tile maps

and MapboxGL.js for Vector Tile maps

Both in the workshop!

When to use what?!

Leaflet.js

An Open-Source JavaScript Library for Mobile-Friendly Interactive Maps

simplicity, performance and usability

Developed by: Vladimir Agafonkin.

Weighing about 38 KB of JS.

Has all the mapping features most developers ever need.

Can be extended with Plugins

Well documented

What Leaflet does not do:

Provide data for you.

Provide the basemap.

Its not GIS

Leaflet is a framework

Layers

Base Layer

Raster

Data Layer / Feature Layer

Vector

Raster tile base map providers

Overview Leaflet providers

PDOK Basemaps

let map = L.map('map').setView([51.505, -0.09], 13);

L.tileLayer('http://{s}.tile.osm.org/{z}/{x}/{y}.png', {
	attribution: '© OpenStreetMap contributors'
}).addTo(map);

Adding data layers

WMS, WFS (slow)

GeoJSON

let marker = L.marker([52.372825, 4.900321]).addTo(map);

// ADD a WMS layer
let cbs = L.tileLayer.wms('https://geodata.nationaalgeoregister.nl/wijkenbuurten2018/wms', {
	'layers': 'cbs_buurten_2018',
	'styles': 'wijkenbuurten2018:wijkenbuurten_thema_buurten_gemeentewijkbuurt_percentage_eenpersoonshuishoudens',
	'srs': 'EPSG:28992',
	'format': 'image/png',
	'transparent': true,
	'opacity': 0.5
}).addTo(map);

Projections

Proj4Leaflet

Proj4js

Use EPSG:28992 > Government in Netherlands obliged to use it!

MapboxGL.js

• https://www.mapbox.com/mapbox-gl-js/api/
• https://www.mapbox.com/mapbox-gl-js/style-spec


				            mapboxgl.accessToken = 'yourowntoken';
				            var map = new mapboxgl.Map({
				              container: 'map-container',
				              style: 'style.json',
				              hash: true,
				              zoom: 11,
				              pitch: 60,
				              bearing: 62.4,
				              center: [ 4.8, 52.4]
				            });


style.json

				            {
				              "version": 8,
				              "name": "Mijn eigen Stijl",
				              "sprite": "url",
				              "glyphs": "url/{fontstack}/{range}.pbf",
				              "sources": {...},
				              "layers": [
				              {
				                "id": "background",
				                "type": "background",
				                "paint": { "background-color":"#FFFFFF" }
				              },
				              {...}
				              ]
				            }


Layers or layers ???

Source

Data layers in tile

Style layer

Leaflet every source is a layer

Vector Tile providers

• Mapbox
• Maptiler
• OpenMapTiles
• OpenZoomStack
• ESRI
• Cartiqo
• PDOK?

Use without token requires own source data!

Generators

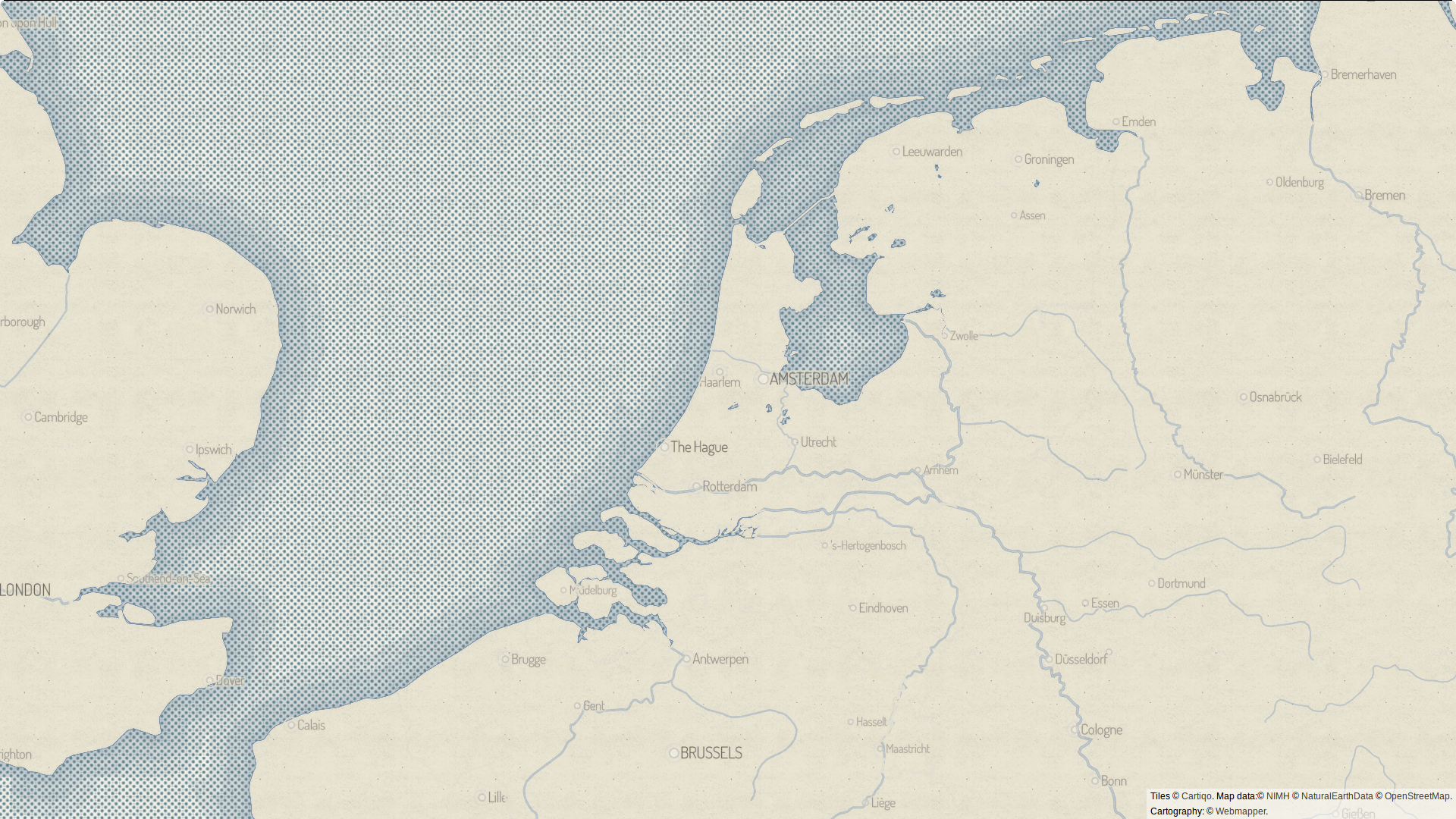

cartiqo

Vector Tiles of the Netherlands

Based on Dutch Open Geo data & OSM

Consistent

Accurate

Simple

Fast

Easy understandable layers and naming

Uniform throughout all zoom levels and source data

cartiqo.nl

Documentation

Developed by Webmapper

Hosted on Maptiler.nl

Let's Map!

Everything is on Github

github.com/NieneB/webmapping_for_developers

Thank you!

Feedback please?

Stay in touch or questions:

niene@webmapper.net
